Technology Overview
SMIC has multiple 90nm products in mass production at our 300mm facilities. With in-depth experience in process development, SMIC provides matured offerings on 90nm technology node to our customers worldwide. Our 90nm process technology uses copper interconnect, low-k material to produce high-performance devices. SMIC's 90nm production at our state-of-the-art 300mm facilities ensures cost optimization, providing our customers with additional resources for further technology enhancements. Furthermore, this technology can be customized to accommodate various design requirements including high speed, low power, mixed signal, RF, and embedded/SOI solutions.
At 90nm, SMIC provides design for manufacturing (DFM) solutions for performance enhancement and yield improvements including reliability assurance. Additionally, 90nm libraries, IP, and I/Os are all available through SMIC's network of library partners.

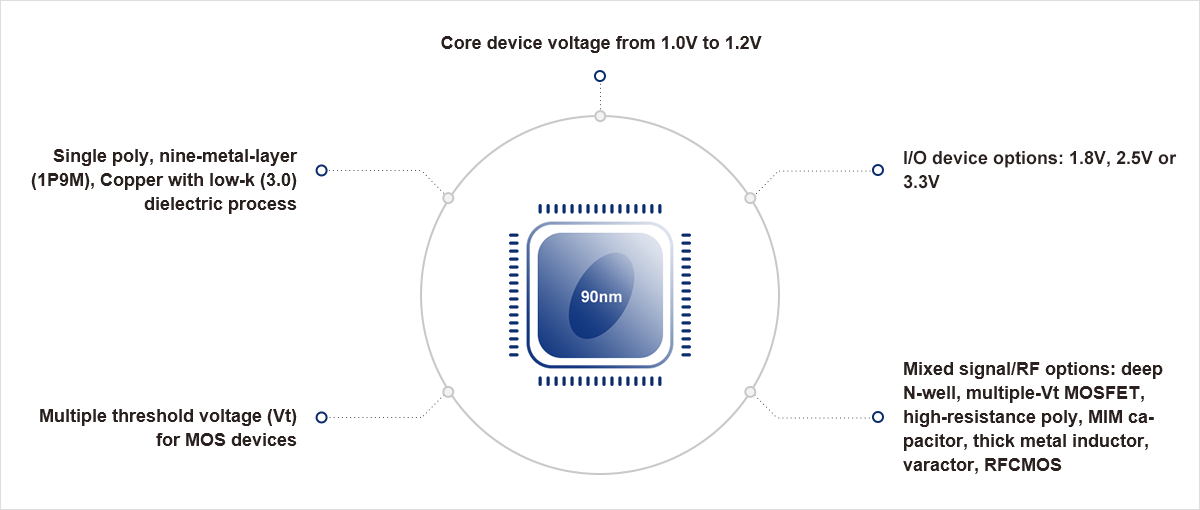

Features

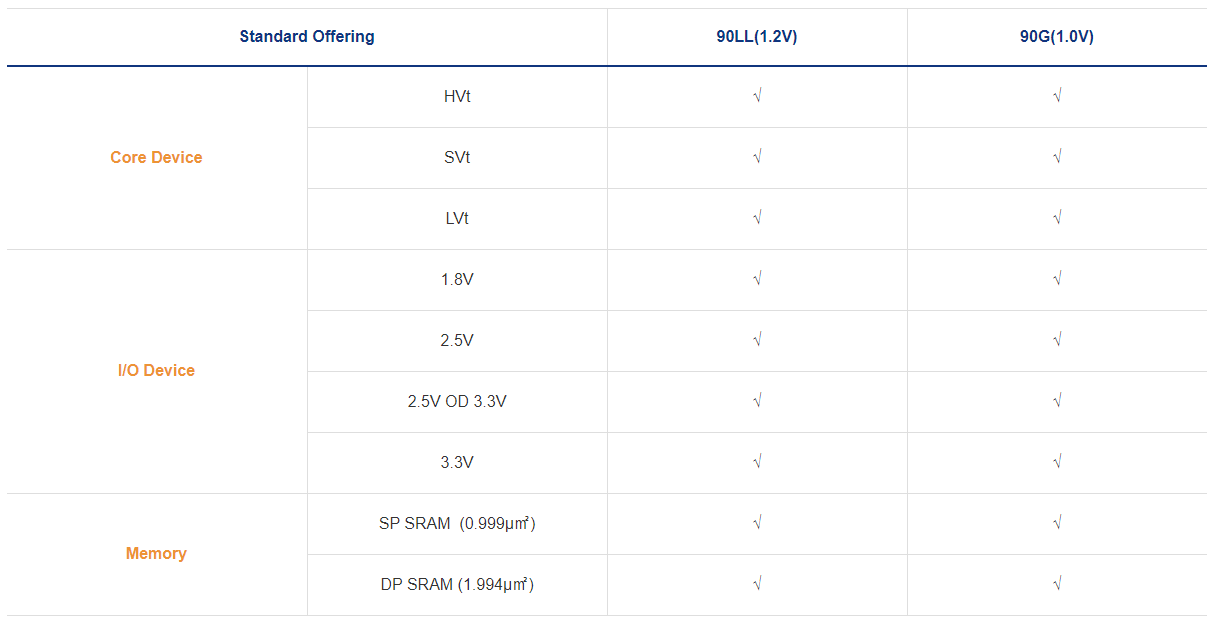

Logic Standard Offering
0.13μm
Application Usage
This 90nm technology fulfills the ever-stringent requirements of power, performance, and integration for applications such as wireless handsets, digital TVs, set-top-boxes, mobile TVs, PMPs, wireless LANs and PC chipsets.
